Surface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim Lock
Surface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim LockSurface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim LockSurface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim Lock

Surface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim Lock

1 out of 5 based on 1 customer rating
(1 customer review)

$149.00

45 in stock

SKU: TKB-GCRIMR-K Category:

Product Description

Colonial Georian Style Rim Lock Right Hand

Surface Box lock for Front Door or
Interior Door Set

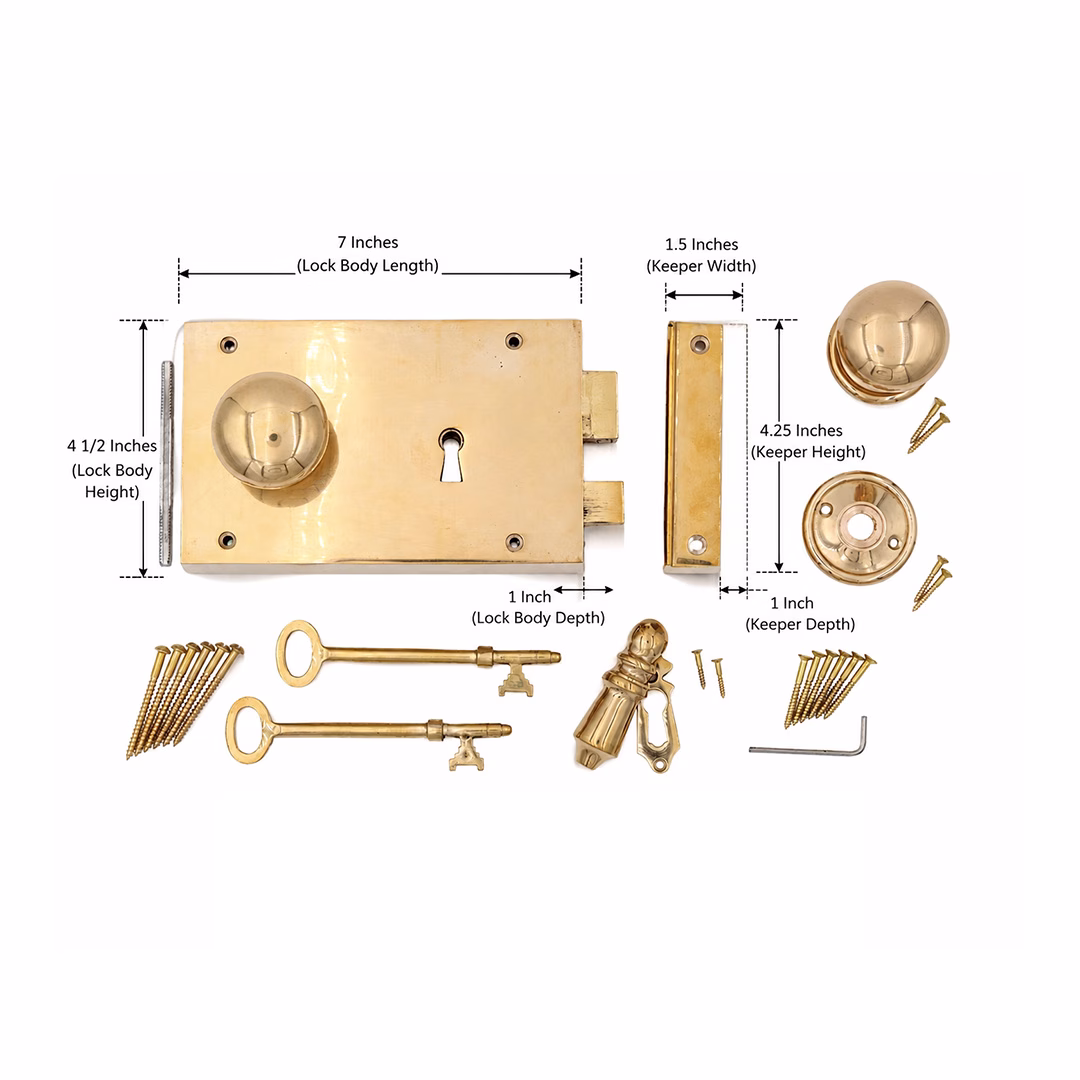

Complete set as shown with swing key hole cover,
2″ D pair of knobs and all you see in the first photo !

Fits: 1/4″ spindles

Sold Cast Brass Rim Lock with Keeper and Keys
Size: 7″ X 4 1/2″
Backset to center of key hole is 2 1/4″

Backset to center of knob is  5 1/4″

( backset is measurement from edge of rim lock, not including keeper )

spindle measure 5/16 ”
the spindle is 4″ long
Age: New Antique Reproduction
Finish : Cast solid brass un lacquered

RIGHT HAND Shown ,

ALSO Left HANDED  AVAILABLE

Gorgeous Quality and Heavy Weight

Additional Information

Weight 7 lbs
Dimensions 20 x 12 x 4 in

1 review for Surface Mounted Antique Replica RIGHT Hand Solid Brass Colonial Rim Lock

  1. 1 out of 5

    (verified owner):

    There were three significant things I had to rework to make this box lock work. First there was interference with the bottom left mounting screw and the lock plunger bar (inside the box). I used a rat tail file chucked in my hand drill with the box lock secured in the vise and worked the lock plunger with my left hand pushing the plunger in and out of the lock, my right hand running the drill with the file in and out of the box lock hole hence filing away at the interference with the bar until the plunger would fully stroke and release smoothly. Second issue was the escutcheon for the exterior side of the door where the key must go through. It was too small for the key to go through, so since the shoulder on the key must remain in order for it to locate in the back side of the lock properly to turn the tumbler for the bolt, the diameter of the escutcheon had to be made larger, so I carefully filed this out so the key would fit in it. Lastly, one of the screws for the door jam catch missed the slotting process, so I had to file a slot in that screw. The extra things I had to do to make this box lock work would tend to make me look for a box lock elsewhere the next time. If I was not handy, I would have sent it back for a return on my money. The Quality Control in the place where this was made is lacking. But, after I spent a few extra hours to install this, it does look pretty nice and functions good now.
