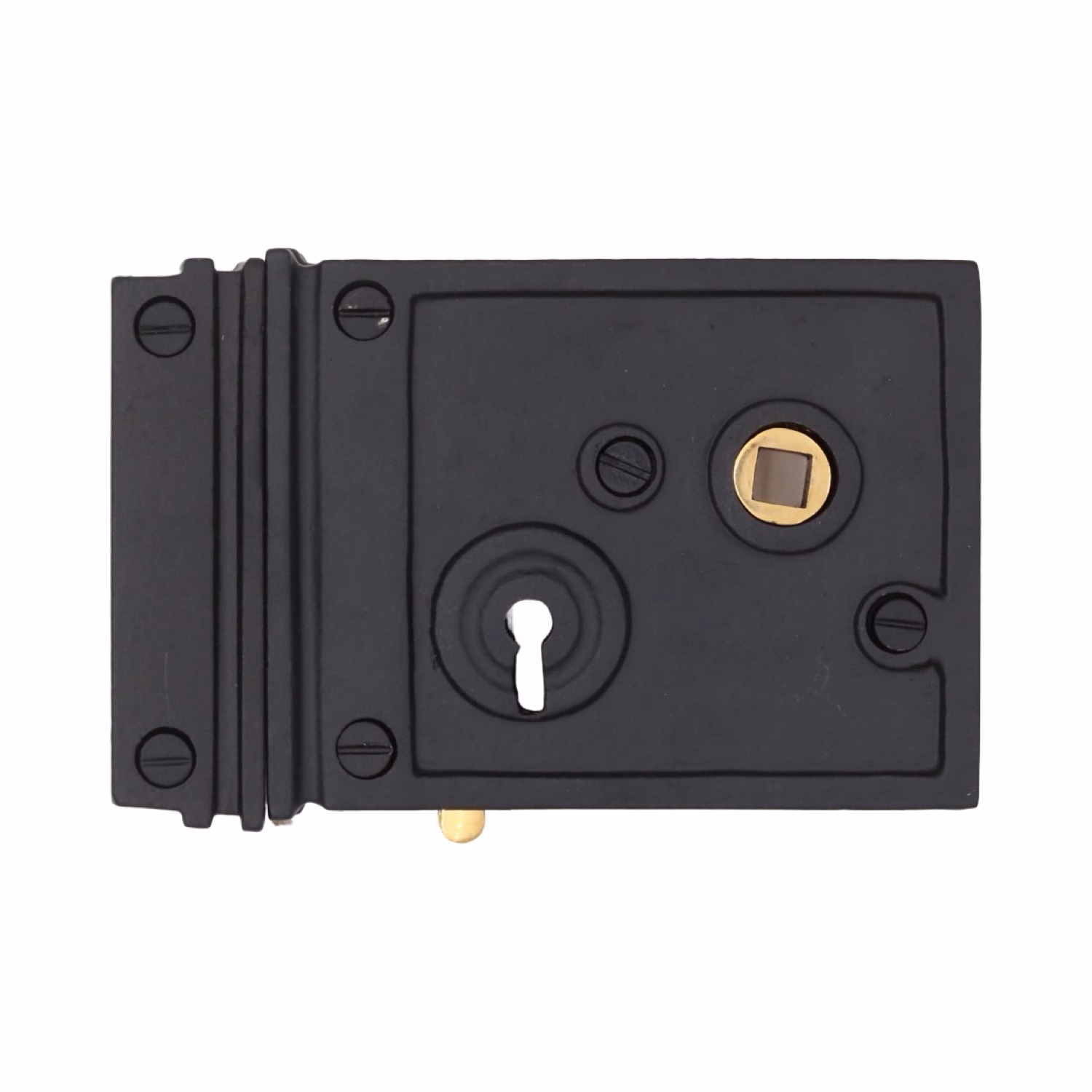

Cast Iron Rectangular Rim Lock with White Porcelain Knobs

This turn of the century style replica Victorian rim lock is a rectangular box lock with a pair of white porcelain knobs, for new or old renovations or building. It is used for right or left hand doors and is reversible on site. The overall size is 5 inches wide by 3.25 inches tall; the rim lock without the keeper is 4 1/4 inches wide by 3 1/4 inches tall, and the keeper is 7/8 inch wide by 3.25 inches tall. It fits 1/4 inch spindle knobs, with a 1.5 inch back set to the key hole and a 3 inch back set to the knob hole. The knobs are 2 1/8 inches in diameter. It is cast iron and weighs 3 lbs. It includes 2 keys, a keyhole cover and screws, and it is new.

Use for right or left hand doors – on site reversible.

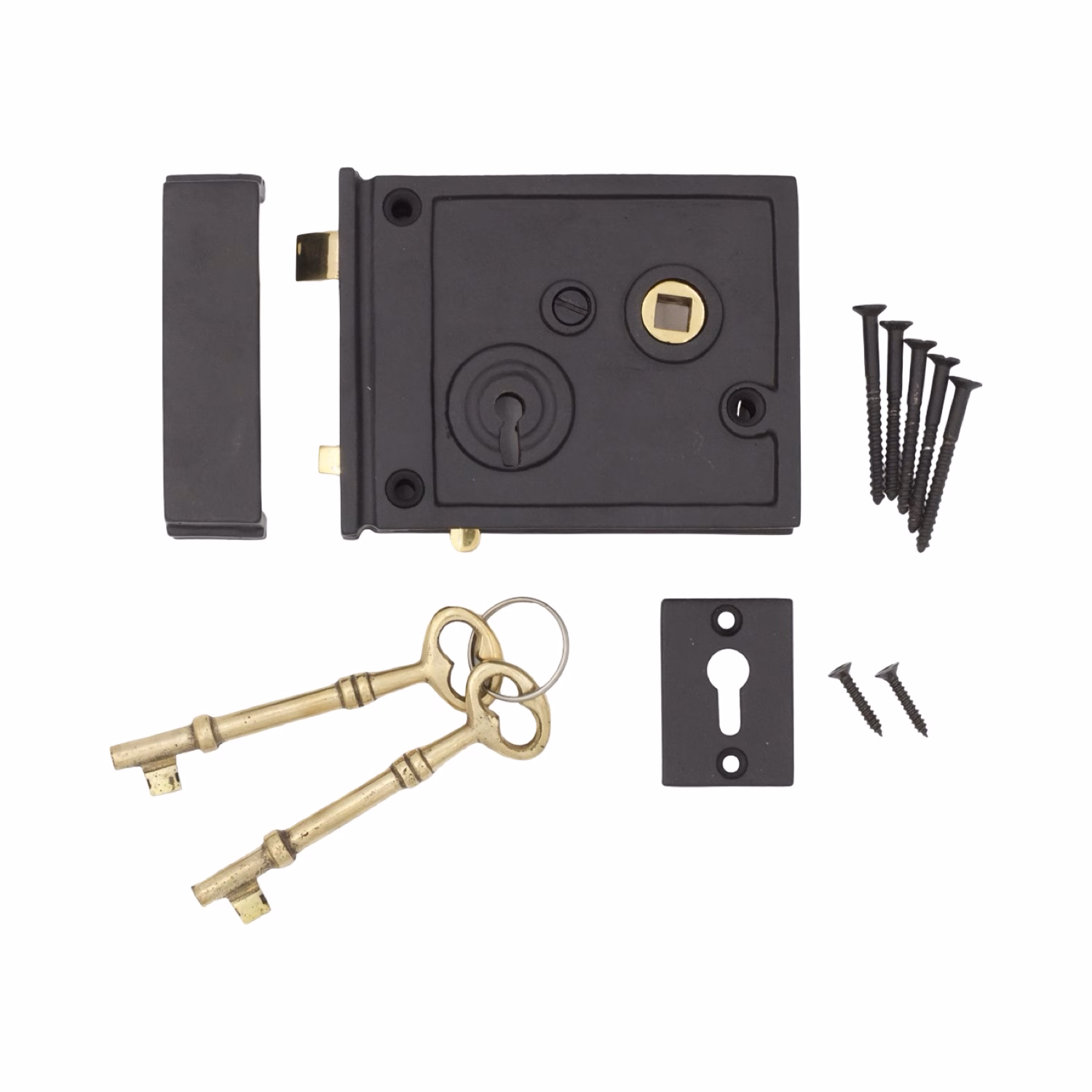

Includes: 2 keys, keyhole cover and screws.

From The Kings Bay in Hardeeville, SC, supplying vintage-style garden décor, home décor and vintage style hardware since 1992.

Specifications

• Material: Cast Iron.
• Overall Size: 5″ Wide by 3.25″ Tall.
• Rim Lock without Keeper: 4 1/4″ Wide by 3 1/4″ Tall.
• Keeper Size: 7/8″ wide by 3.25″ Tall.
• Fits: 1/4″ spindle knobs.
• Keyhole: 1.5″ back set to key hole.
• Knob: 3″ back set to knob hole.
• Knob Size: 2 1/8″ diameter knobs.
• Weight: 3 lbs.
• Age: New.
